適用范圍：用汽相清洗工藝流程清洗產品。

主要技術參數：

重量：約3.5T

超聲功率：7.2KW

整機消耗功率：約20KW

電源AC380V (三相四線）

蒸汽加熱(或與電加熱并用）

3組外形尺寸：（LXWXH) 4200*2200*4000(mm)

過濾器精度：可根據用戶要求確定1-50 nm

同時配置冷 凍機組、電加熱裝置

功能特點：

1、采用單件、多件懸掛或籃式、筐式等多種靈活的裝卸方式；

2、淋槽、清洗槽、漂洗槽內可根據情況適配加熱、循環過濾及油水分離裝置等；

3、多種組合工藝可滿足不同中的清洗要求，可供選擇的工藝配置有：熱浸洗、熱噴淋、超聲波清洗、多級噴 淋漂洗、超聲波清洗、去離子水噴淋漂洗、熱風或遠 紅外;烘干等等；

4、適用性廣、工藝靈活、清洗量大、清洗度高、操作簡單；

5、增設單獨循環過濾系統，保證清洗效果，節約成本；

6、傳動控制采用PLC和變頻器無級調速控制；

7、冷凍機組能有效防止清洗溶劑的揮發；

8、清洗槽配置蒸汽加熱裝置；

9、整機分為上下兩部分，可以自行拆裝，便于運輸安裝;

10、塑鋼窗體封裝，方便觀察機體內的運行狀況。

Applications:Clean the products by using the petrol cleaning agent.

Main technical parameters:

Weight:about 3.5T

Ultrasonic power:7.2KW

Overall power consumption:about 20KW

Power AC380V(four phase)

steam heating(or with the electric heating and use)

set of 3Dimensions:(L*W*H)4200*2200*4000(mm)

Filter precision:according to user requirements to determine 1-50m,at thesame time configuration refrigeration units, the electric heating device.

多槽式超聲波汽相清洗機

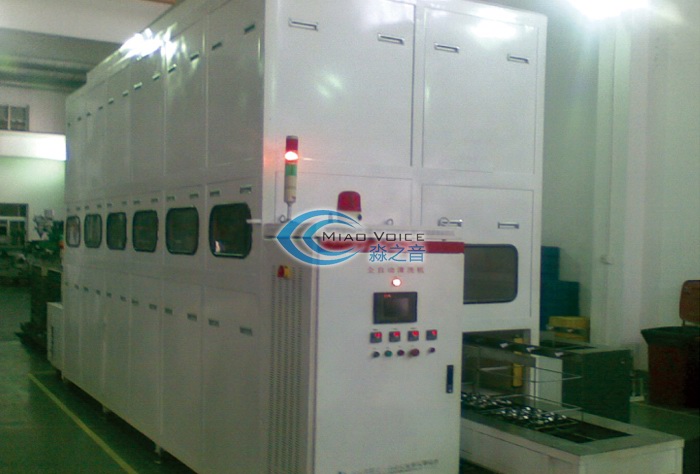

Ultrasonic Vapor Phase Cleaning Machine

Function Characteristic:

1. Multiple pieces of hanging or basket,basket and other flexible material handling;

2. Leaching tank,washing tank,rinse tank to adapting and filtration and oil-water separation device;

3. Kinds of combination process can meet the different requirements of cleaning,selection of process configuration: hot dip,thermal spraying,ultrasonic cleaning,multi-stage spray rinsing,ultrasonic cleaning,deionized water spray rinse,air or far infrared drying and so on;

4. With wide adaptability,flexible process,the large amount of cleaning,cleaning degree is high and the operation is simple;

5. Additional separate circulation filtration system,ensure the cleaning effect,saves the cost;

6. Transmission control using PLC and frequency converter stepless speed control;

7. Refrigeration unit can effectively prevent cleaning solvent volatilization;

8. Cleaning slot configuration steam heating device;

9. The machine is divided into two parts.can be disassembled, convenient for transportation and installation;

10. Steel window package,convenient to observe the running condition.
